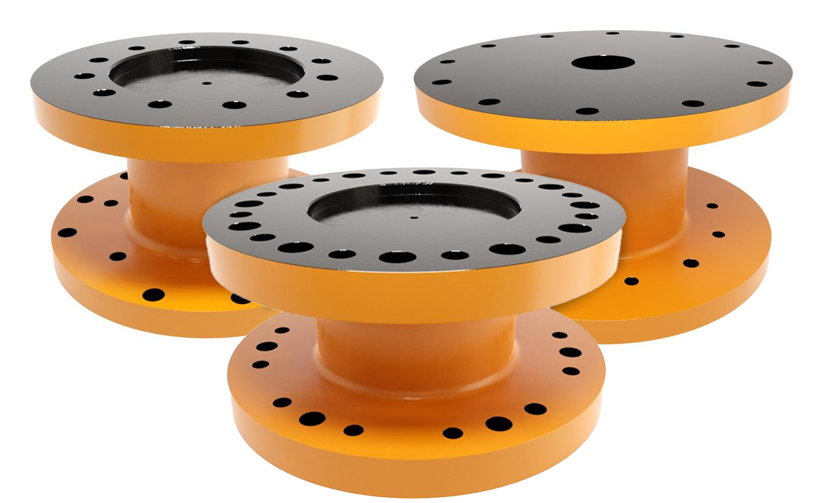

Robot Tool Changer Spacers
Robot tool changer spacers are precision-engineered components placed between the robot flange and the tool changer. They help adjust the spacing, alignment, and orientation of tools to meet specific application requirements.
Tech Rim Standards offers three sizes of robot tool changer spacer to fit any robot with universal hole patterns.
Features
- Fully-enclosed solid steel design.
- Mounting and connector options for all robot types.
- Immediate delivery options for all sizes.
Ordering Information

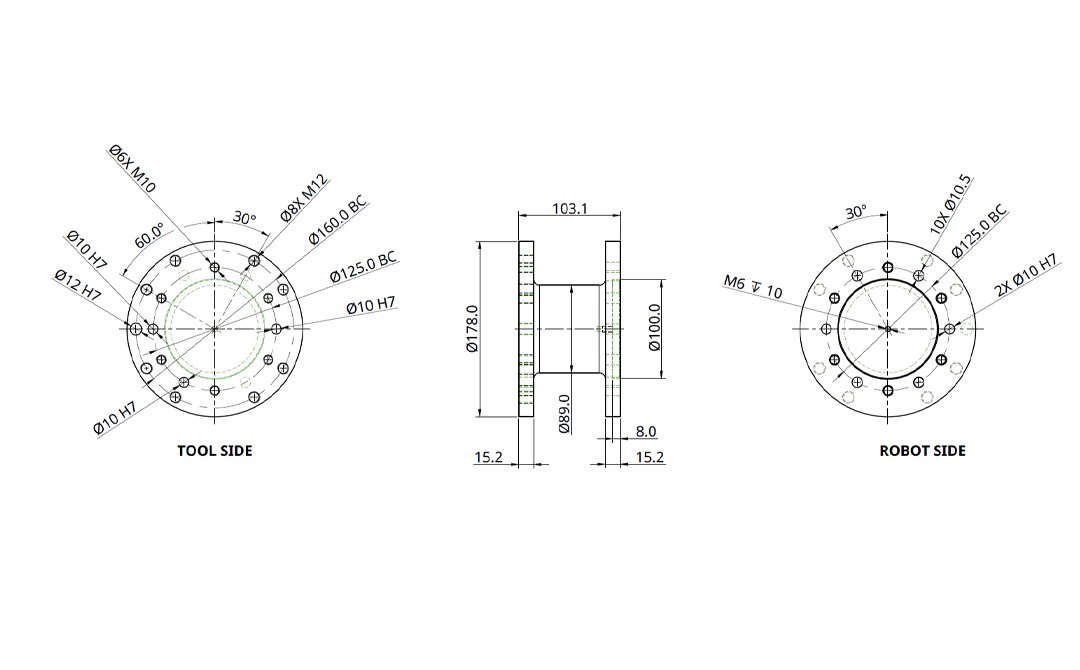

TRS-210 Drawing

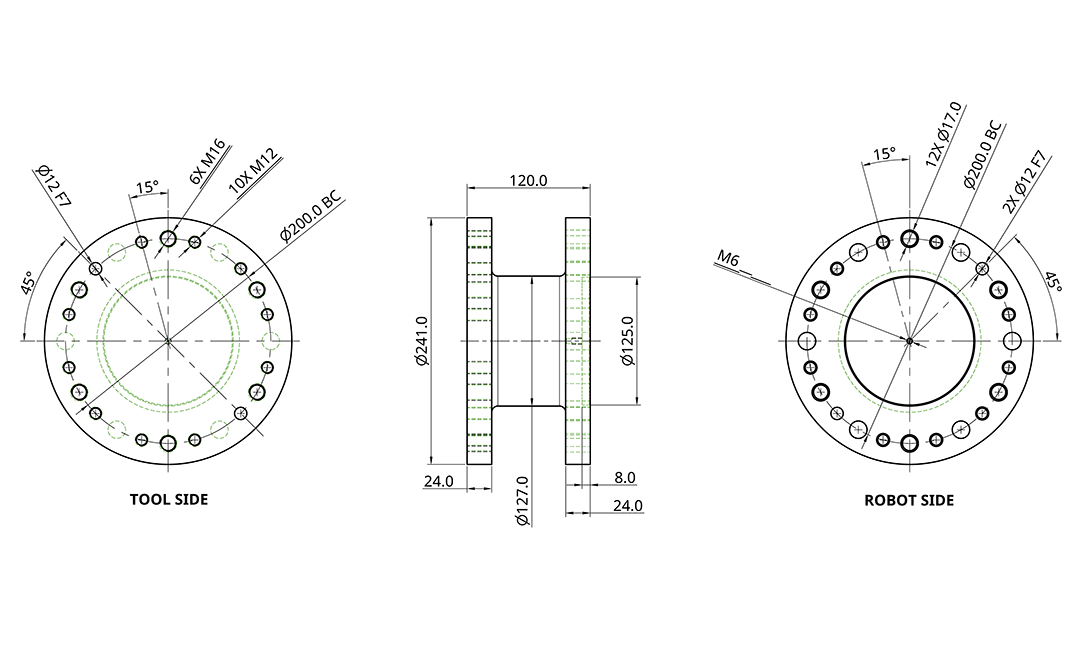

TRS-310 Drawing

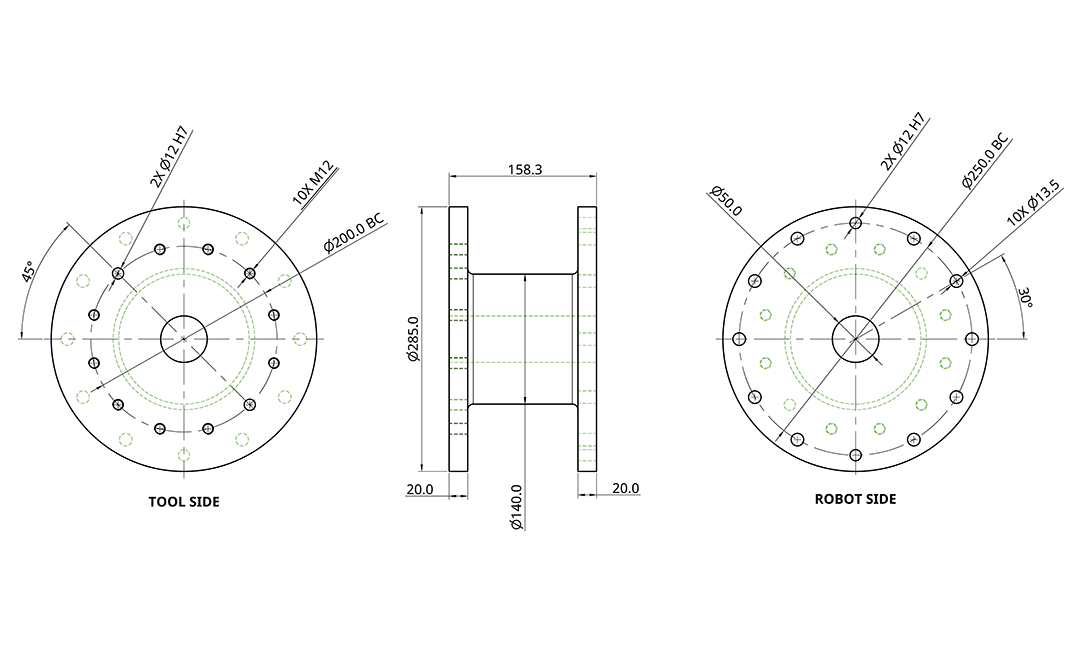

TRS-410 Drawing
| Part Number | Robot Interface | Stack Height | Tool Interface |
|---|---|---|---|
| TRS-210 | 125 | 103 | 125/160 |
| TRS-310 | 200 | 120 | 200 |
| TRS-410 | 250 | 158.3 | 200 |
Ordering Information
| Part Number | Robot Interface | Stack Height | Tool Interface |
|---|---|---|---|
| TRS-210 | 125 | 103 | 125/160 |
| TRS-310 | 200 | 120 | 200 |
| TRS-410 | 250 | 158.3 | 200 |
TRS-210 Drawing
TRS-310 Drawing
TRS-410 Drawing
