Tooling Adapters

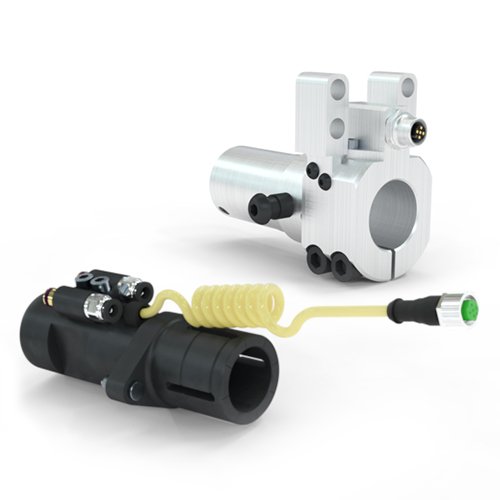

The TE-RDC Tooling Adapter (Bayonet) is an industry standard manual tool changer.
For use on new or existing tri-axis and crossbar pressroom applications.
Features
- Plug-and-play compatibility
- Lightweight aluminum
- Pneumatic options
- Tube/Mount tooling options
- Electrical options
Ordering Information
| Part No. | Description | Weight |
|---|---|---|
| TE-LRA20125SA4ENN | Tooling Adaptor, 125S, 1.25 inch ID Knurl, (2) 1/4 inch Ports, 4-Pin Connector, Straight | 0.5 kg [1.1 lbs] |
| TE-LRA20125SNNNN | Tooling Adaptor, 125S, 1.25 inch ID Knurl, No Air, No Electrical | 0.4 kg [0.9 lbs] |
| TE-LRA20150DANNN | Tooling Adaptor, 1.50 inch Stud, 2-Ports ¼ Air, No Electrical | 0.5 kg [1.0 lbs] |
| TE-LRA20125DANNN | Tooling Adaptor, 1.25 inch Stud, 2-Ports ¼ Air, No Electrical | 0.4 kg [1.0 lbs] |
| TE-LCH1175 | Clamp Collar for UN/125S Mount Options | 0.3 kg [0.2 lbs] |
| TE-RDC-15 | Tooling Adaptor, 1.50 inch, NO Air Manifold, NO Electrical | 0.6 kg [1.3 lbs] |
| TE-RDC-15-MC | Tooling Adaptor, 1.50 inch, NO Air Manifold, 5-Pin M12 Connector | 0.7 kg [1.5 lbs] |
| TE-RDC-15-E4-HF | Tooling Adaptor, 1.50 inch, (4) 1/4 inch Ports, NO Electrical | 0.7 kg [1.5 lbs] |
| TE-RDC-15-E4-MC-HF | Tooling Adaptor, 1.50 inch, (4) 1/4 inch Ports, 5-Pin M12 Connector | 0.8 kg [1.7 lbs] |
| TE-RDB-M5P-5MCF | Pass-Thru Connector, 5-Pin M12 | 0.1 kg [0.2 lbs] |
