TECH-EFFECTOR™

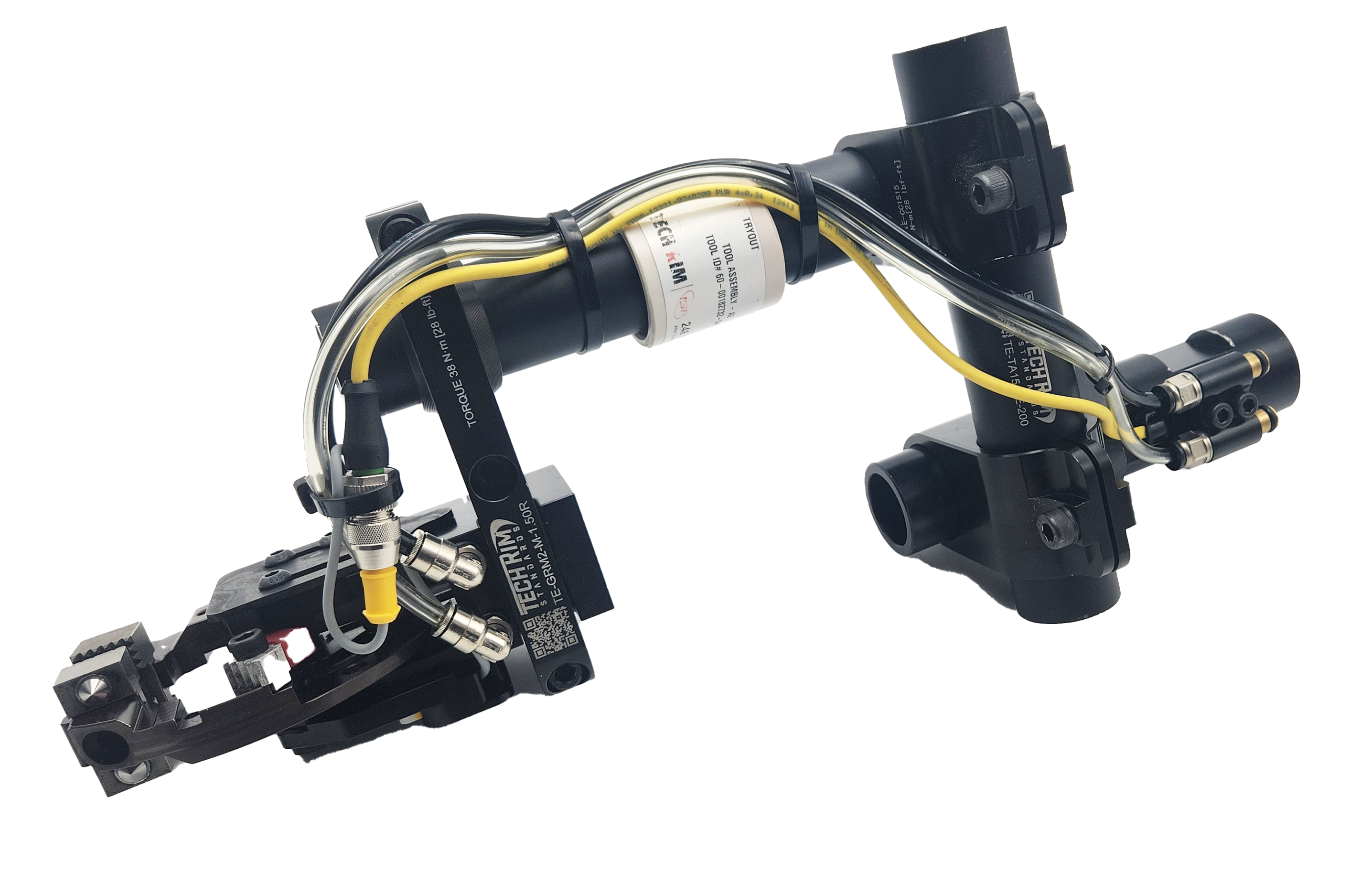

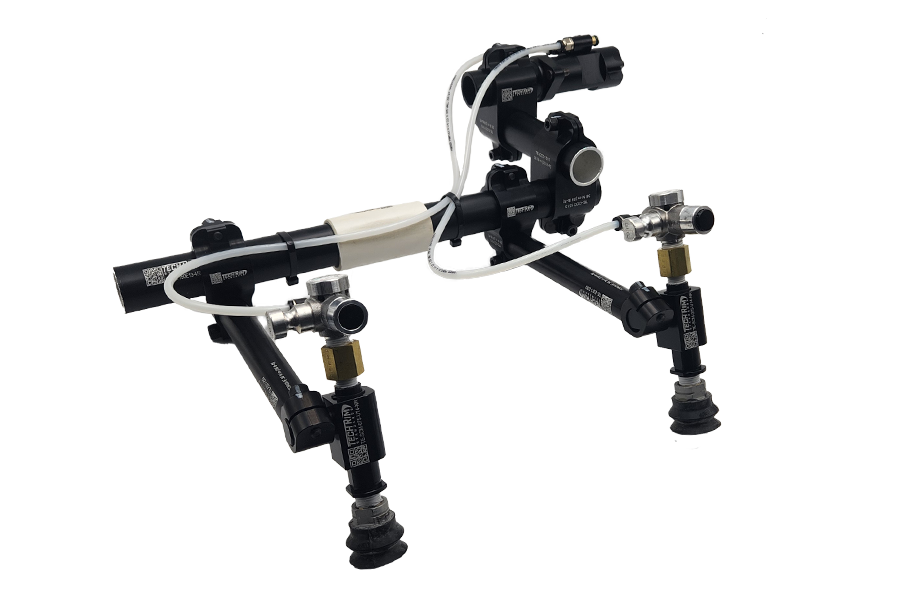

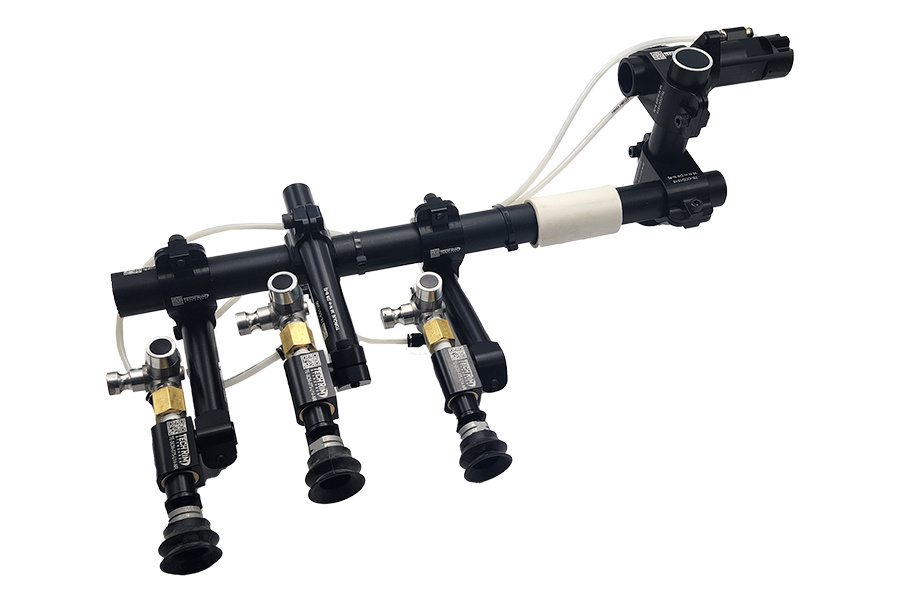

The Tech-Effector™ is a fully adjustable product line for End of Arm Tooling from Tech Rim Standards


Grab Button and Drag Left or Right to Change Image

TECH-EFFECTOR PARTS FEATURES

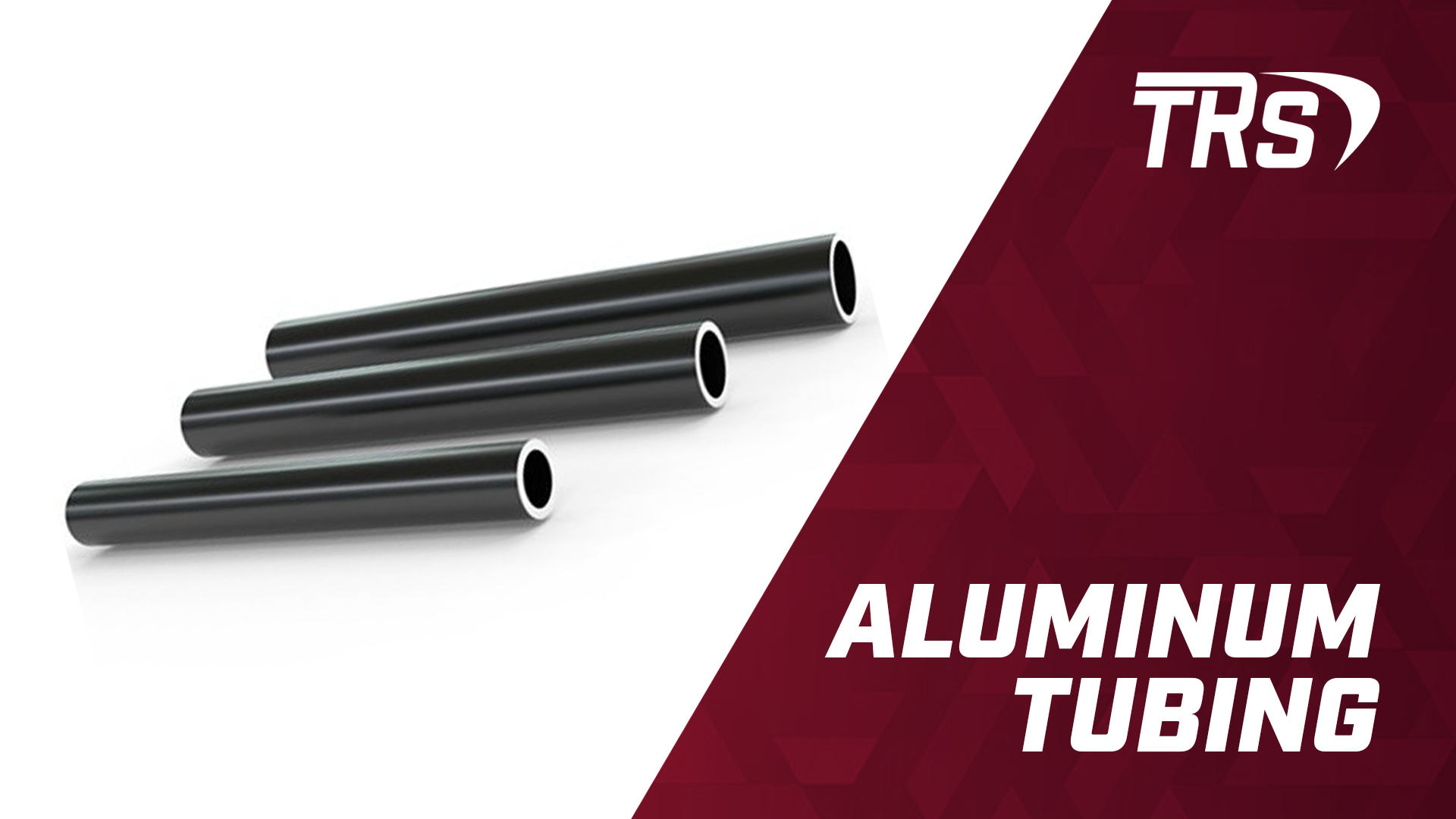

ALUMINUM TUBING

DESCRIPTION

Tech-Effector aluminum tubing is manufactured from lightweight, high strength aluminum. Available in a variety of sizes. Optimized design assures a good combination of weight and deflection characteristics

FEATURES

• Lightweight and robust

• Black anodize finish

• Precision OD for best performance

• Length available in 5mm steps

Ordering Information
Part No.

Description

Weight
TE-RT100E13-L (LENGTH in 5 mm steps)
1.00 inch diameter x 1/8 inch wall, Aluminum Tube
0.6 kg/m [0.41 lbs/ft]
TE-RT125E13-L (LENGTH in 5 mm steps)
1.25 inch diameter x 1/8 inch wall, Aluminum Tube
0.8 kg/m [0.51 lbs/ft]
TE-RT150E13-L (LENGTH in 5 mm steps)
1.50 inch diameter x 1/8 inch wall, Aluminum Tube
0.9 kg/m [0.61 lbs/ft]

Aluminum Tubing DOWNLOADS

TE-RT Aluminum Tubing Spec Sheet

SPEC SHEETS

Click Image to Enlarge

CROSS CLAMPS

DESCRIPTION

Tech-Effector cross clamps are manufactured from lightweight, High strength aluminum. Available in a variety of sizes. Optimized design assures minimum tooling weight and maximum holding power.

FEATURES

• Lightweight and robust

• Class 12.9, M8 fasteners

• Laser etched for reliable part identification

Ordering Information
Part No.

Description

Weight
TE-CC1010
1.00 inch to 1.00 inch, Cross Clamp
0.12 kg [0.26 lbs]
TE-CC1313
1.25 inch to 1.25 inch, Cross Clamp
0.19 kg [0.42 lbs]
TE-CC1310
1.25 inch to 1.00 inch, Cross Clamp
0.15 kg [0.33 lbs]
TE-CC1515
1.50 inch to 1.50 inch, Cross Clamp
0.29 kg [0.64 lbs]
TE-CC1513
1.50 inch to 1.25 inch, Cross Clamp
0.19 kg [0.42 lbs]
TE-CC1510
1.50 inch to 1.00 inch, Cross Clamp
0.17 g [0.38 lbs]

Cross Clamps DOWNLOADS

TE-CC Cross Clamps Spec Sheet

SPEC SHEETS

Click Image to Enlarge

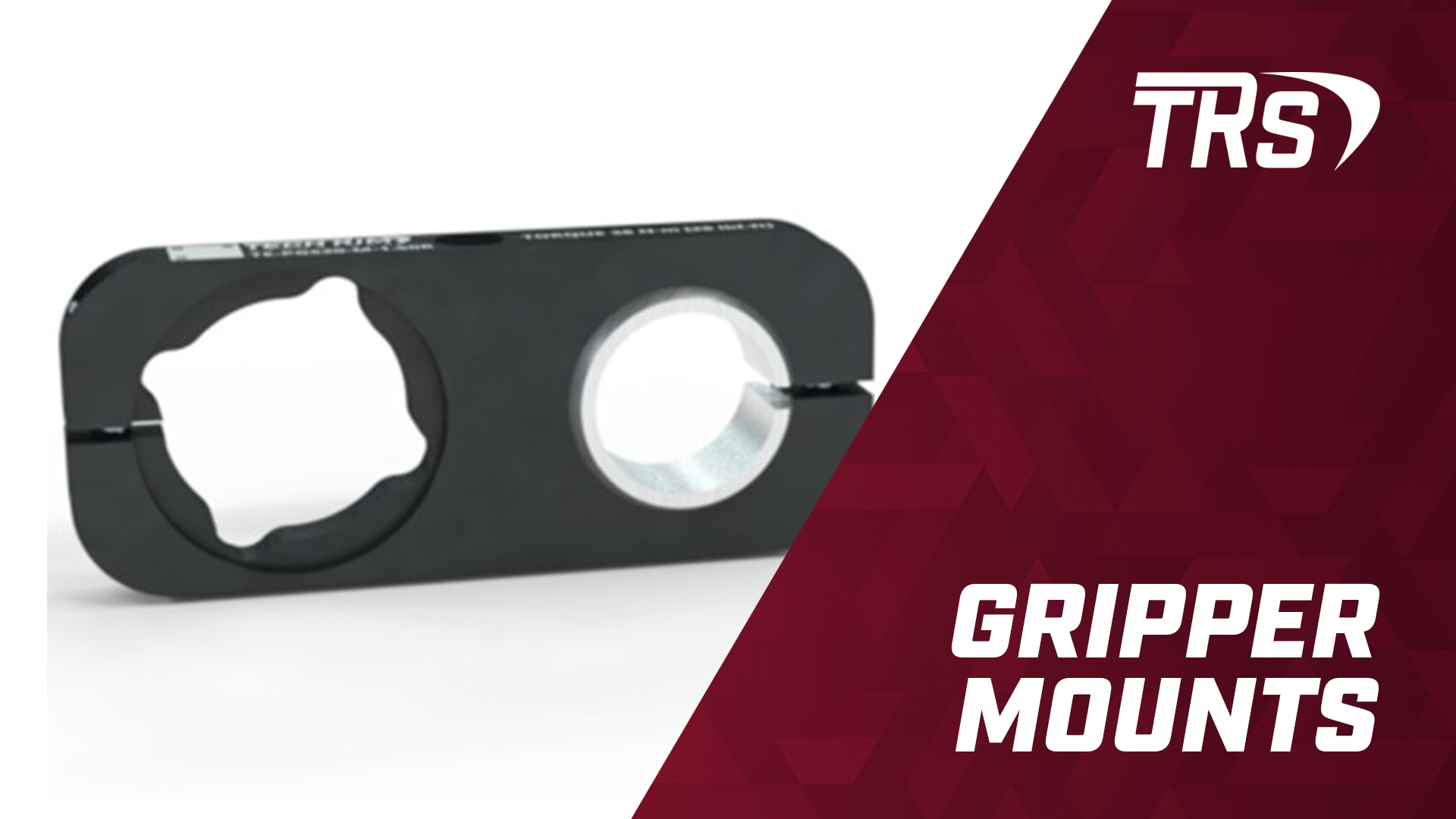

Gripper Mounts

DESCRIPTION

Tech-Effector Gripper Mounts secure the gripper to the tooling system. The spherical ball enables orbital adjustment. Many options to adapt to various manufactures.

FEATURES

• High strength aluminum

• Connection to TE-TR Tubing

• Orbital ±30° adjustability

• Adapts to many popular brands

Ordering Information
Part No.

Description

Weight
TE-GRM2-M-1.50R
Gripper Mount, GRM2 Gripper to 1.50 inch Diameter Tubing
0.41 kg [0.90 lbs]
TE-PGS20-M-1.50R
Gripper Mount, PGS20 Gripper to 1.50 inch Diameter Tubing
0.38 kg [0.84 lbs]

Gripper Mounts DOWNLOADS

TE Gripper Mounts Spec Sheet

SPEC SHEETS

Click Image to Enlarge

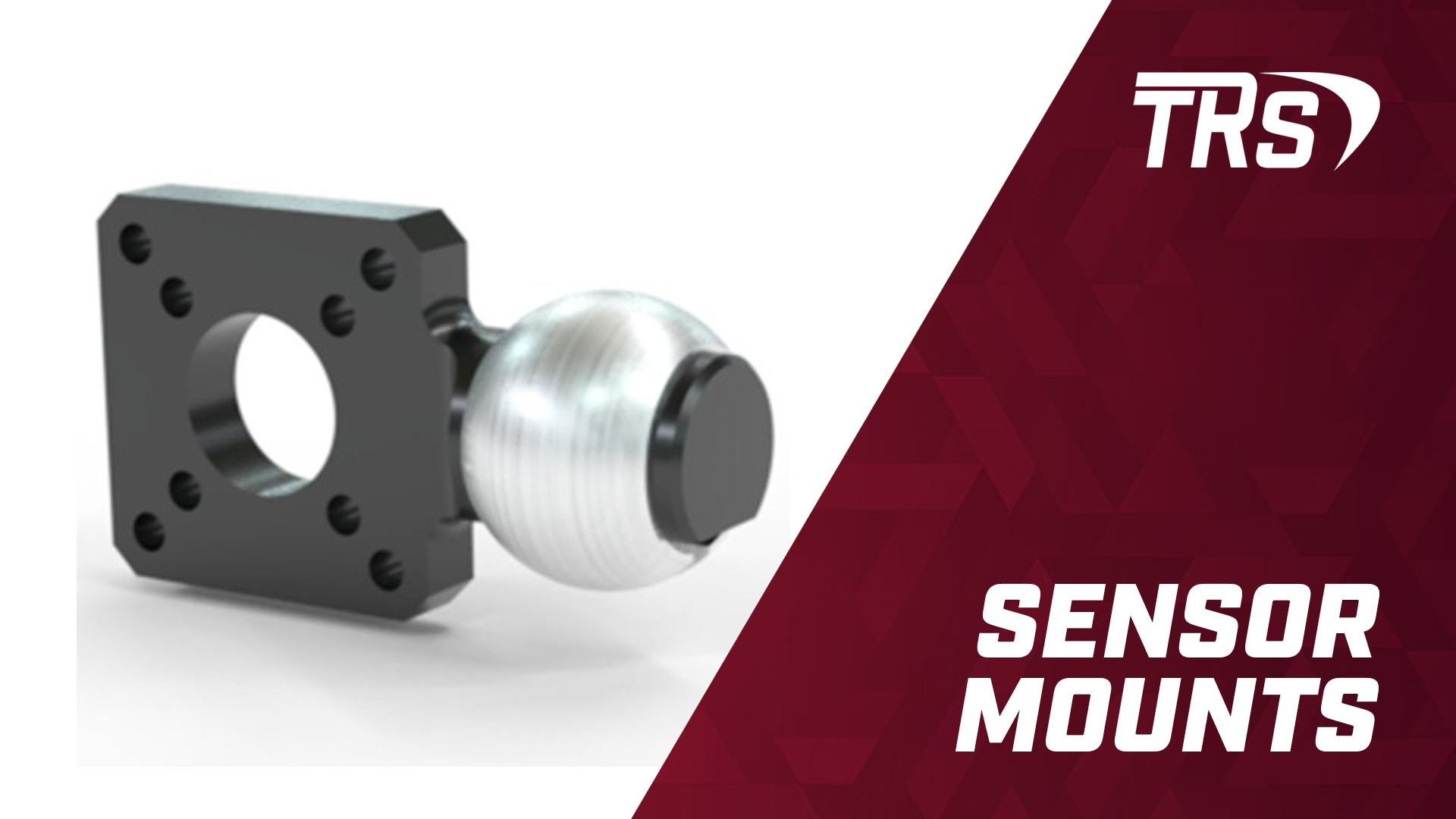

SENSOR MOUNTS

DESCRIPTION

Tech-Effector TE-SM Sensor Mount is designed for 40mm “Cube-Style” and threaded “Barrel-Style” proximity sensors. It connects to the tooling system via industry standard 19mm “Apple-Core” or 1-1/8 inch spherical ball.

FEATURES

• Black anodize finish

• Connection to TE-ES1

• High strength aluminum

• Accommodates barrel and 40mm cube sensors

Ordering Information
Part No.

Description

Weight
TE-SM-C40-18-AC
Sensor Mount, 40mm Cube, 18mm hole, Apple-Core Mount
0.05 kg [0.10 lbs]
TE-SM-C40-30-AC
Sensor Mount, 40mm Cube, 30mm hole, Apple-Core Mount
0.04 kg [0.08 lbs]
TE-SM-C40-18-B112
Sensor Mount, 40mm Cube, 18mm hole, 1.125 inch Ball
0.05 kg [0.10 lbs]
TE-SM-C40-30-B112
Sensor Mount, 40mm Cube, 30mm hole, 1.125 inch Ball
0.05 kg [0.10 lbs]

Sensor Mounts DOWNLOADS

TE-SM Sensor Mounts Spec Sheet

SPEC SHEETS

Click Image to Enlarge

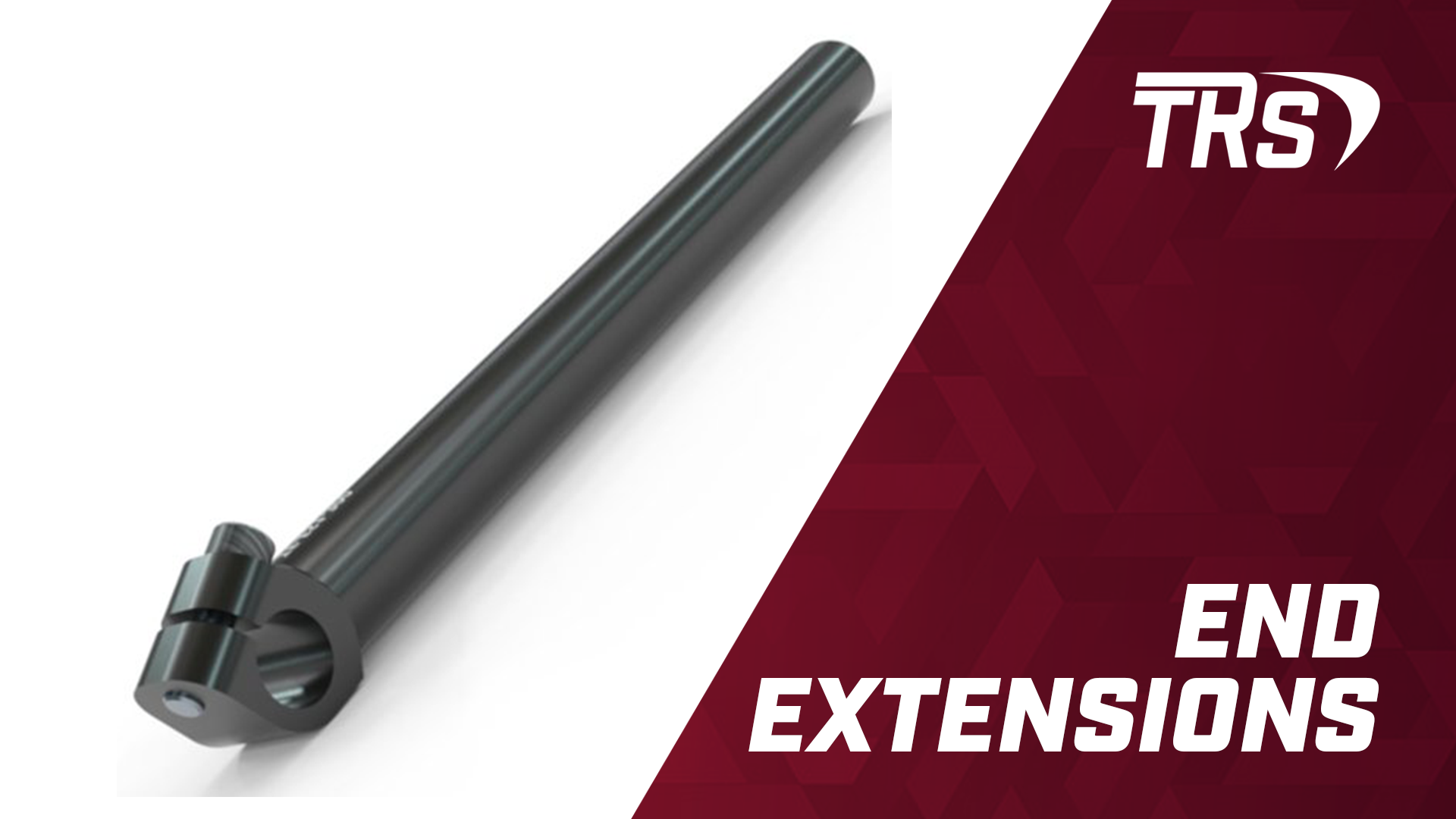

END EXTENSIONS

DESCRIPTION

Tech-Effector TE-ES1 End Extension provides connection and adjustability to “Apple-Core” style items. Vacuum cup mounts, vacuum generators, proximity sensors, etc. It’s available in various length options.

FEATURES

• “Apple-Core” style connection

• Black anodize finish

• 1.00 inch diameter rod

• High strength aluminum

Ordering Information
Part No.

Description

Weight
TE-ES1-100
End Extension, 1.00 inch diameter, 100mm long
0.14 kg [0.31 lbs]
TE-ES1-150
End Extension, 1.00 inch diameter, 150mm long
0.17 kg [0.38 lbs]
TE-ES1-200
End Extension, 1.00 inch diameter, 200mm long
0.21 kg [0.46 lbs]
TE-ES1-250
End Extension, 1.00 inch diameter, 250mm long
0.24 kg [0.53 lbs]
TE-ES1-300
End Extension, 1.00 inch diameter, 300mm long
0.28 kg [0.61 lbs]

End Extensions DOWNLOADS

TE-ES1 End Extensions Spec Sheet

SPEC SHEETS

Click Image to Enlarge

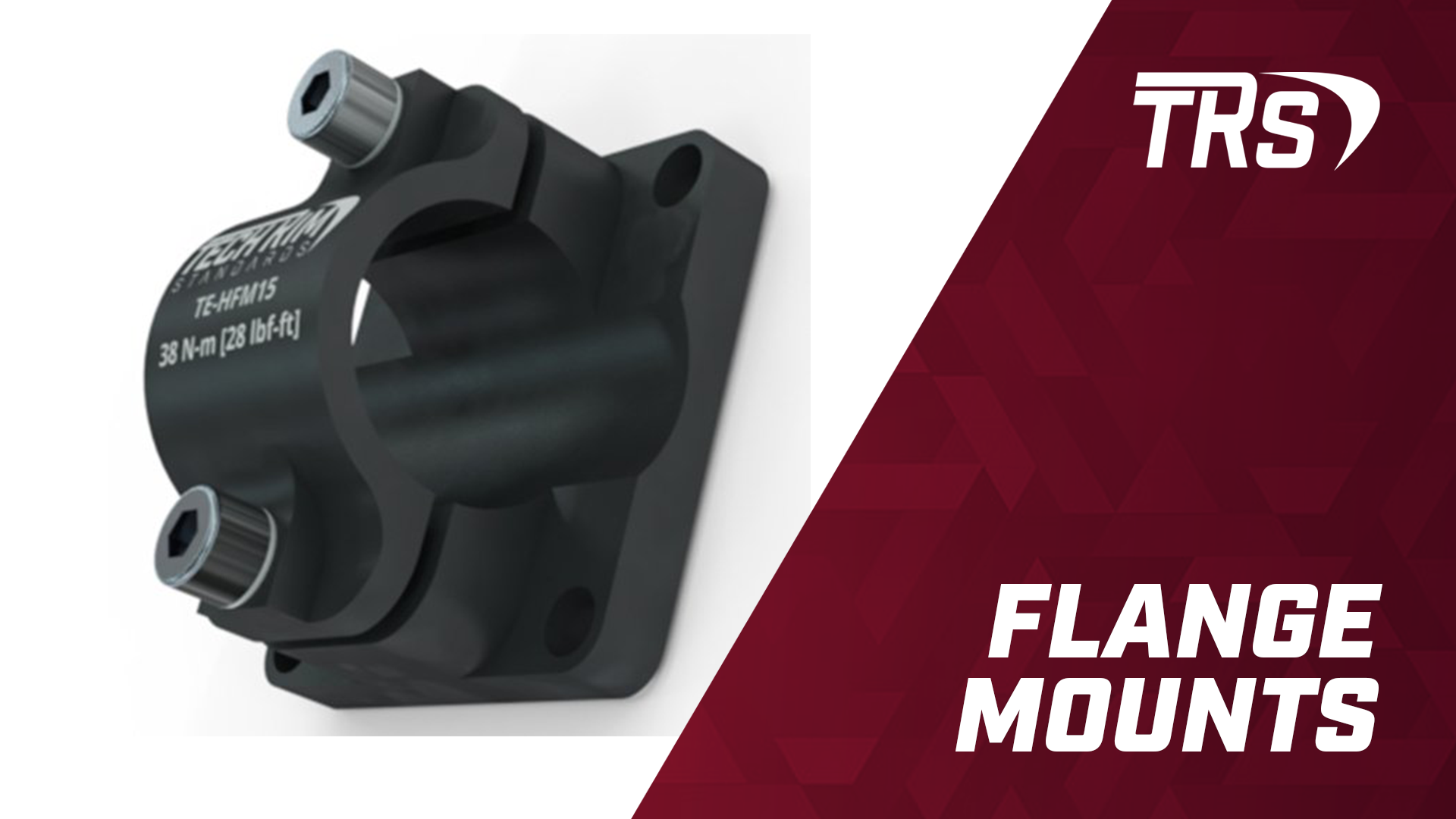

FLANGE MOUNTS

DESCRIPTION

Tech-Effector TE-HFM Horizontal Flange Mount is a versatile component used in lightweight end effector designs. It provides a simple means for securing tubing to mount plates and tool changers.

FEATURES

• High strength aluminum

• Square M8 mounting hole pattern

• Dowel holes for precise location

Ordering Information
Part No.

Description

Weight
TE-HFM15
Flange Mount, 1.50 inch diameter
0.26 kg [0.58 lbs]

Flange Mounts DOWNLOADS

TE-HFM15 Flange Mounts Spec Sheet

SPEC SHEETS

Click Image to Enlarge

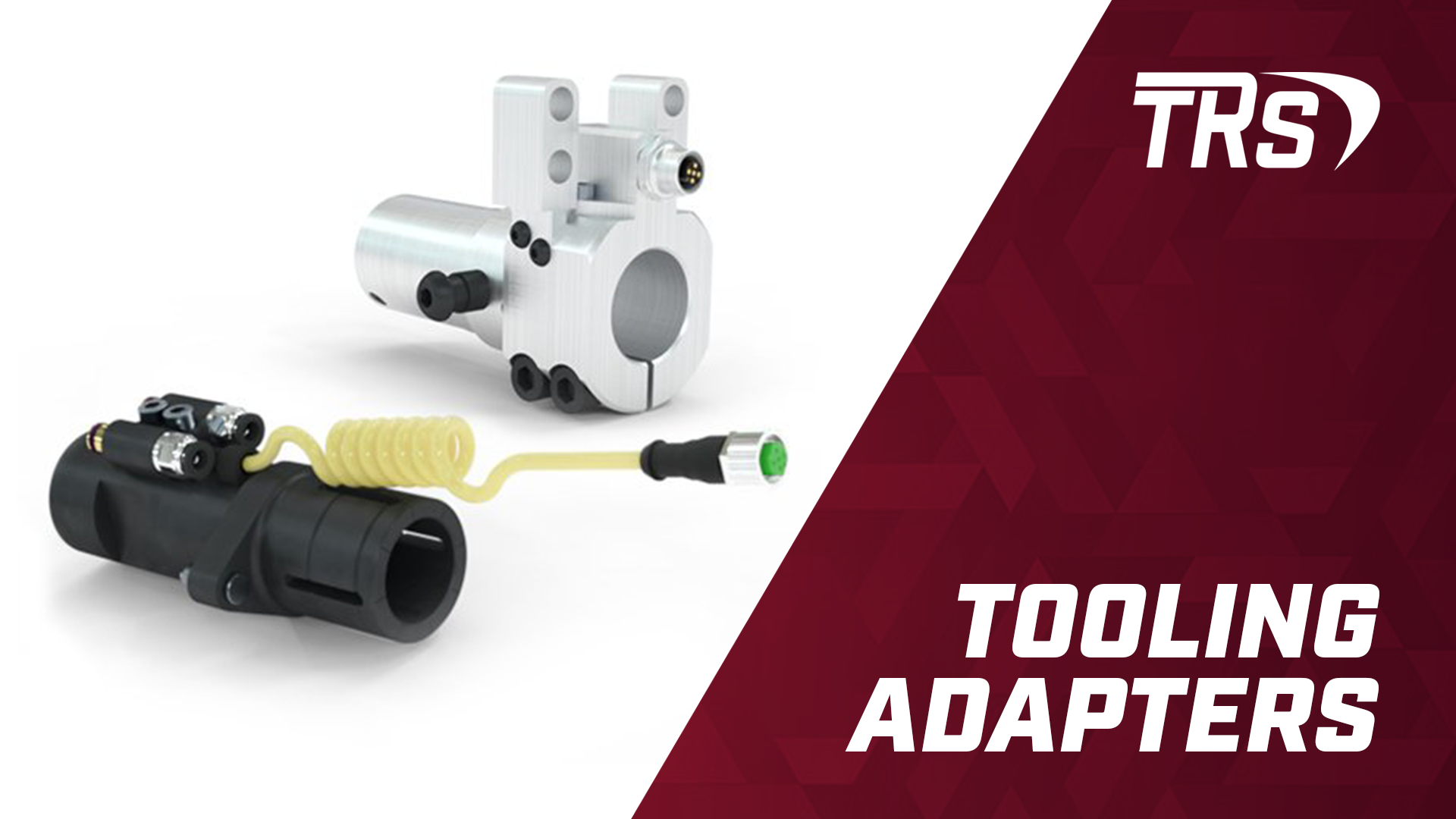

TOOLING ADAPTERS

DESCRIPTION

The TE-RDC Tooling Adapter (Bayonet) is an industry standard manual tool changer. For use on new or existing tri-axis and crossbar pressroom applications.

FEATURES

• Plug and Play compatibility

• Lightweight Aluminum

• Pneumatic Options

• Tube/Mount Tooling Options

• Electrical Options

Ordering Information
Part No.

Description

Weight
TE-LRA20125SA4ENN
Tooling Adaptor, 125S, 1.25 inch ID Knurl, (2) 1/4 inch Ports, 4-Pin Connector, Straight
0.5 kg [1.1 lbs]
TE-LRA20125SNNNN
Tooling Adaptor, 125S, 1.25 inch ID Knurl, No Air, No Electrical
0.4 kg [0.9 lbs]
TE-LRA20150DANNN
Tooling Adaptor, 1.50 inch Stud, 2-Ports ¼ Air, No Electrical
0.5 kg [1.0 lbs]
TE-LRA20125DANNN
Tooling Adaptor, 1.25 inch Stud, 2-Ports ¼ Air, No Electrical
0.4 kg [1.0 lbs]
TE-LCH1175
Clamp Collar for UN/125S Mount Options
0.3 kg [0.2 lbs]
TE-RDC-15
Tooling Adaptor, 1.50 inch, NO Air Manifold, NO Electrical
0.6 kg [1.3 lbs]
TE-RDC-15-MC
Tooling Adaptor, 1.50 inch, NO Air Manifold, 5-Pin M12 Connector
0.7 kg [1.5 lbs]
TE-RDC-15-E4-HF
Tooling Adaptor, 1.50 inch, (4) 1/4 inch Ports, NO Electrical
0.7 kg [1.5 lbs]
TE-RDC-15-E4-MC-HF
Tooling Adaptor, 1.50 inch, (4) 1/4 inch Ports, 5-Pin M12 Connector
0.8 kg [1.7 lbs]
TE-RDB-M5P-5MCF
Pass-Thru Connector, 5-Pin M12
0.1 kg [0.2 lbs]

SPEC SHEETS

Click Images to Enlarge

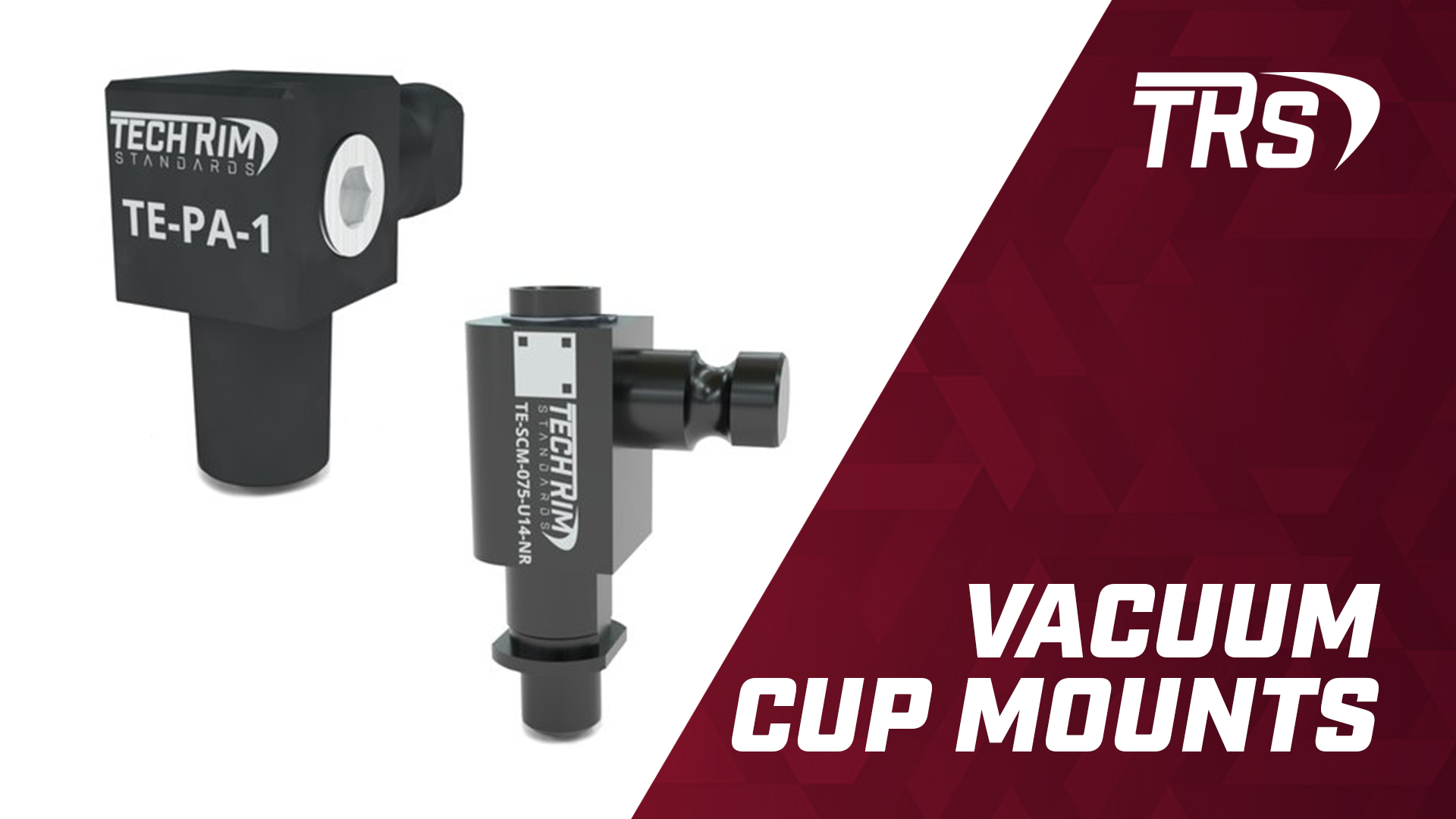

VACUUM CUP MOUNTS

DESCRIPTION

Tech-Effector TE-PA-1 Port Adapter is a vacuum cup mount. It connects to TE-ES1 End Extension via “Apple-Core” style. Includes porting for connection to a vacuum source.

FEATURES

• Black anodize finish

• Connection to TE-ES1 • High strength aluminum

Ordering Information
Part No.

Description

Weight
TE-PA-1
Port Adapter, 3/8 NPT Male, ¼ NPT Female, Apple-Core
0.07 kg [0.14 lbs]
TE-SCM-075-U14-NR
Spring Cup Mount, 19mm stroke, 3/8 NPT Male x ¼ NPT Female
0.15 kg/m [0.34 lbs]
TE-SCM-19-G14-NR
Spring Cup Mount, 19mm stroke, 3/8 ISGO Male x ¼ ISOG Female
0.15 kg/m [0.34 lbs]

SPEC SHEETS

Click Image to Enlarge
