TECH-STOP™
NAAMS Stop Block with integrated inductive sensor. Eliminates need for additional brackets and adjustments.
Tech-Stop Demo Video

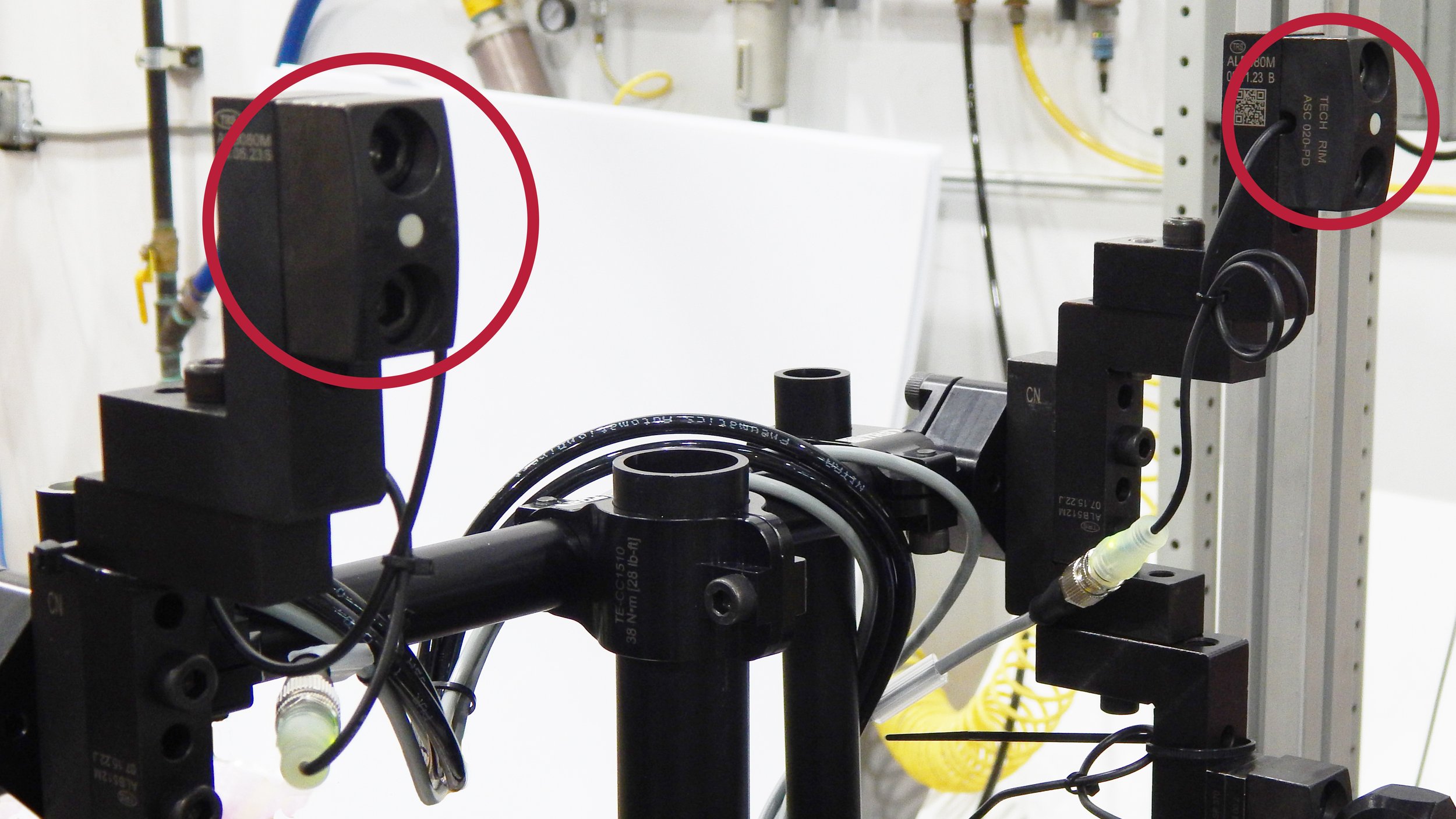

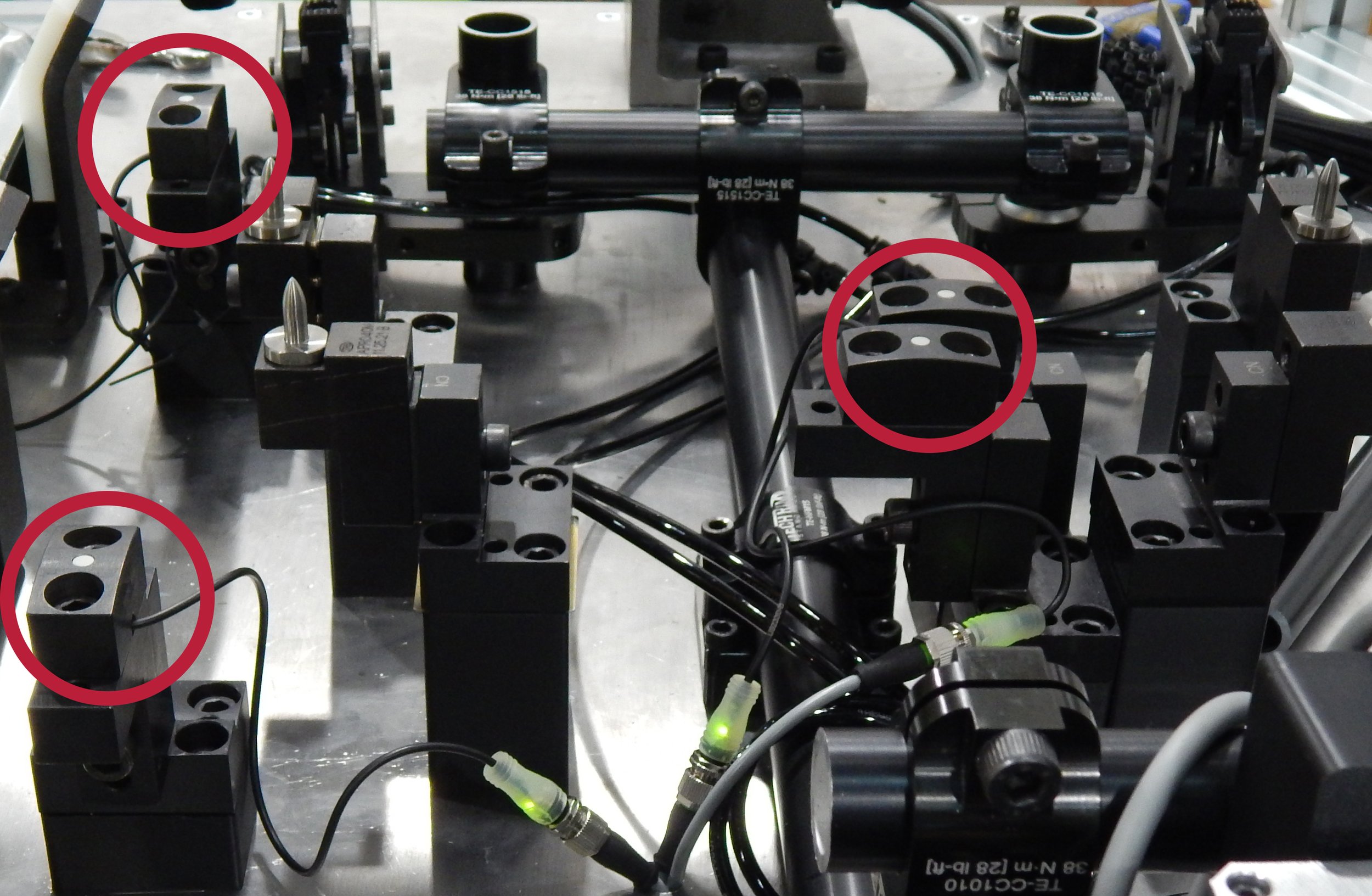

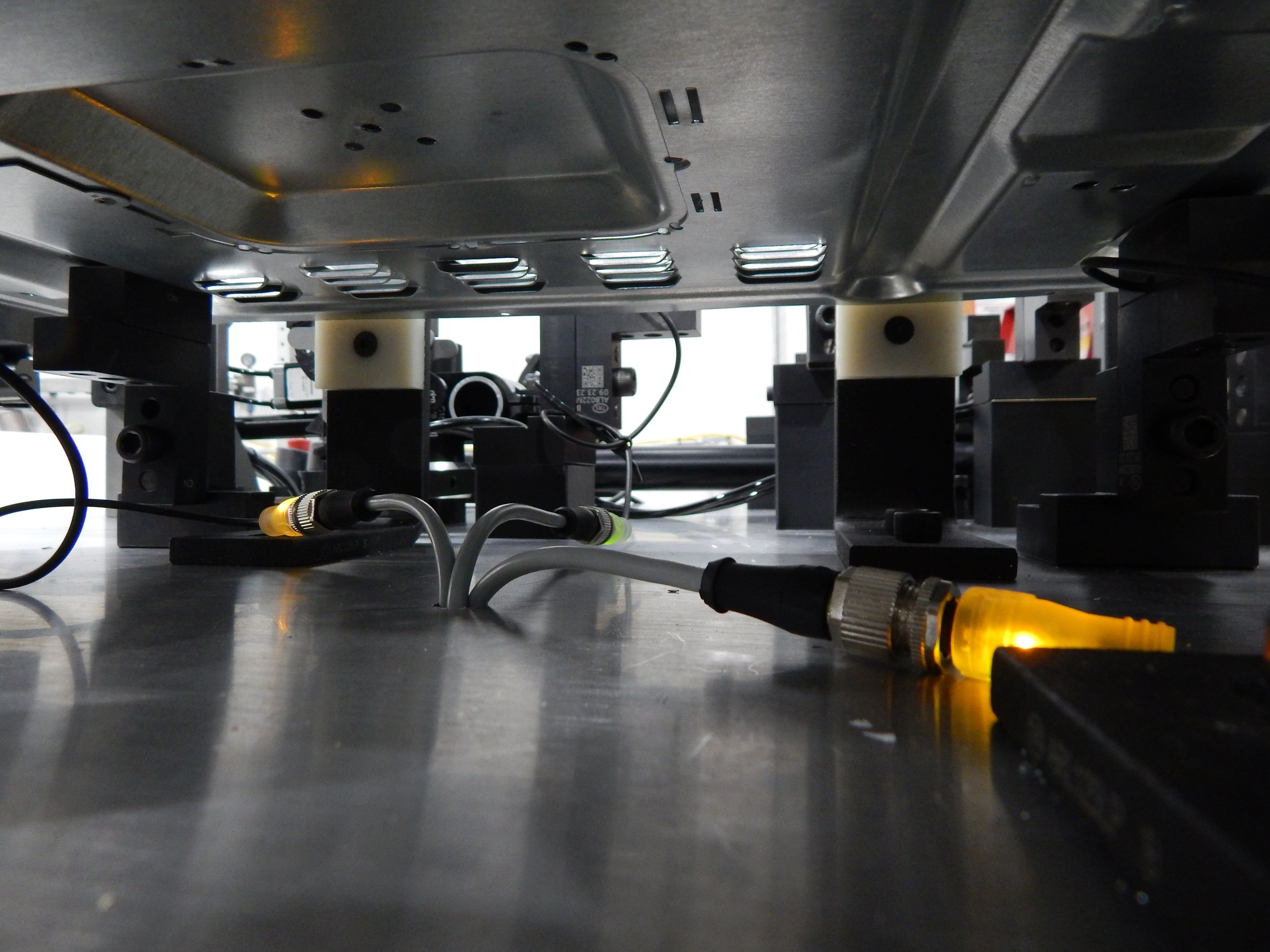

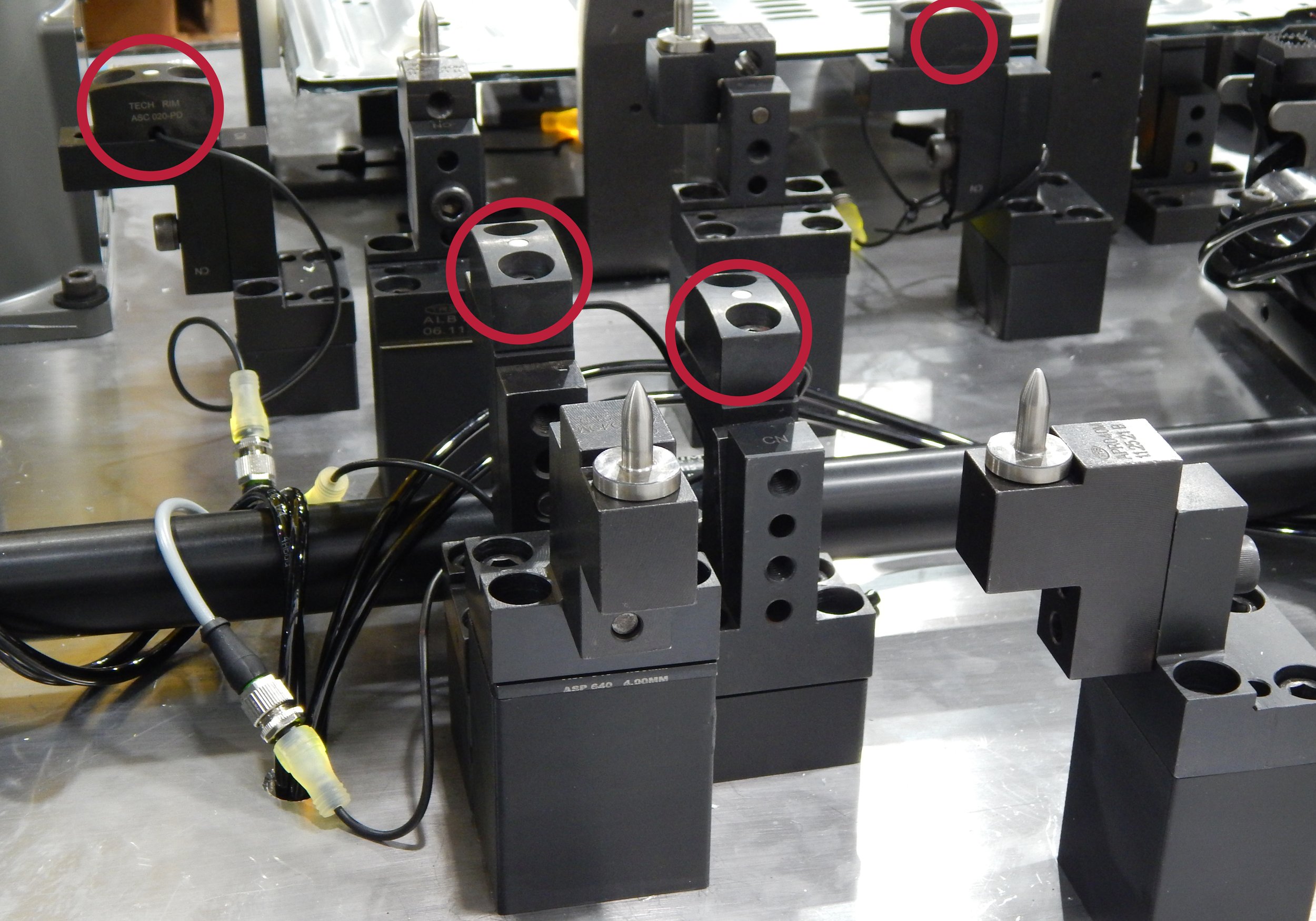

Tech-Stop Installation Photos

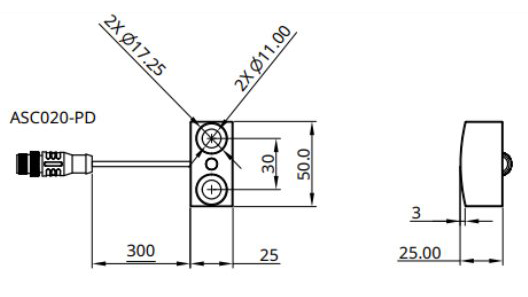

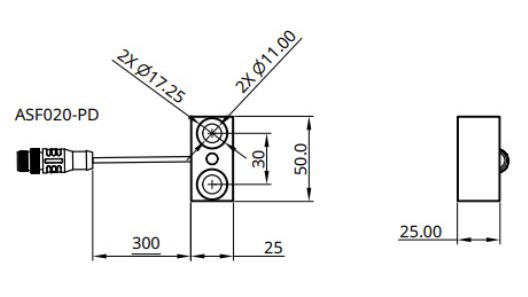

| ASC020-PD | Crowned style, 25mm, Drilled and Counterbored for M10 Socket Head Cap Screw | |
| ASF020-PD | Flat style, 25mm, Drilled and Counterbored for M10 Socket Head Cap Screw | |

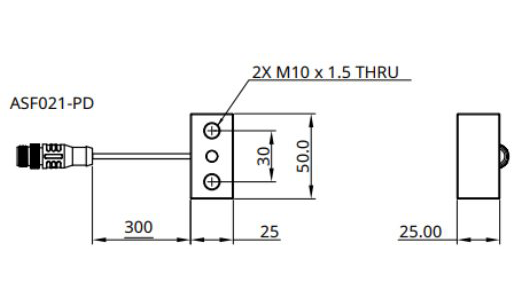

| ASF021-PD | Flat style, 25mm, Tapped Thru M10 x 1.5 | |
| ||
Proximity Sensor NAAMS Stop Blocks

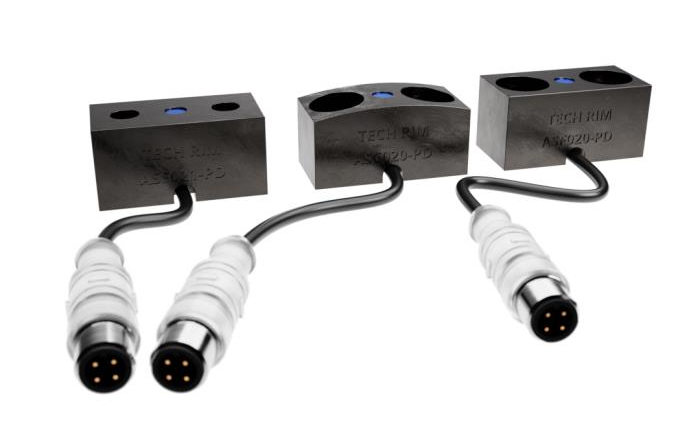

What do you get when you combine NAAMS stop blocks with integrated inductive sensors? You get Tech-Stop™.
These robust all in one sensors and stops make perfect solutions for automation products like cylinders, actuators, slides, rotates, gantries, etc.
The Tech-Stop eliminates the need for additional brackets and adjustments.
The built in LED lights flag the status of the sensors to operators and their compact design ensures they will function and fit in any environment.
NAAMS Standard Mount Pattern
2mm Nominal Sensing Range

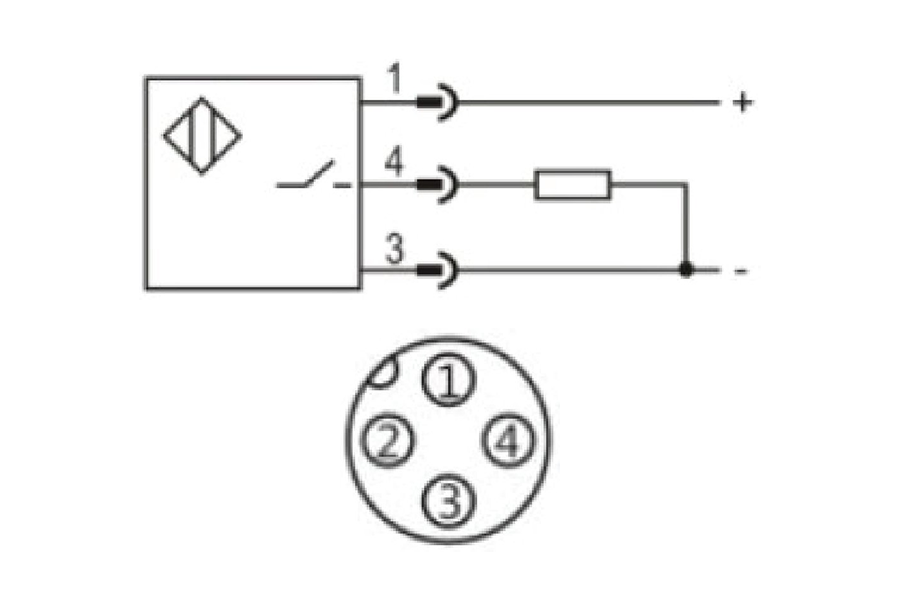

M12 Connector with LEDS (300mm long cord)
PNP, Normally Open Output Function
Available in crowned and flat variants with a variety of hole options.
| Mounting | See drawings | Protecton circuit | Short-circuit, overload and reverse polarity protection |
| Rated distance Sn | 2mm | Power indicator | Green LED |
| Assured distance Sa | 0…1.6mm | Output indicator | Yellow LED |
| Output | PNP NO | Ambient temperature | -25℃…70℃ |
| Supply voltage | 10…30 VDC | Ambient humidity | 35-95%RH |
| Standard target | Fe, 8 x 8 x 1mm | Switch frequency | 1000 Hz |
| Switch point offset [%/Sr] | ≤±10% | Insulation resistance | ≥50MΩ(500VDC) |
| Hysteresis range [%/Sr] | 3-15% | Vibration resistance | Complex amplitude 1.5mm 10…50Hz(2H per X,Y,Z direction) |
| Repeated error | ≤3% | Protection degree | IP67 |
| Load current | ≤150mA | Housing material | Steel, black oxide finish |
| Residual voltage | ≤1.8V | Material of sensing face | Plastic |
| Current consumption | ≤15mA | Protection circuit | 300mm +5mm XL-PUR cable + M12 connector with LED |
